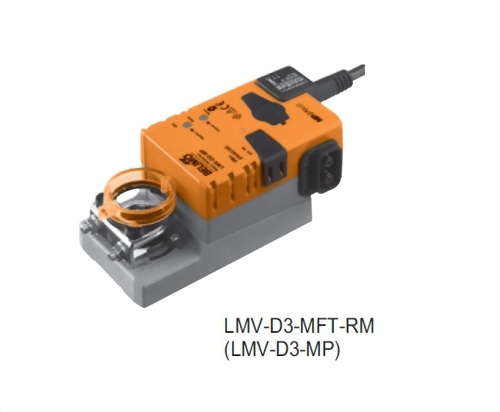

Drive

Drive

Rated voltage: AC/DC 24V

Rated voltage range: AC-2~28 8v/dc 6~28.8V

Power consumption: 13w@ running/1.5w@ Standby

Drive parameters

Torque (Rated torque): Min 4Nm @ rated voltage

Control signal: DC 0~10v, input impedance 100kω

Feedback signal: DC 2~10v, maximum 0.5mA

Positioning accuracy: ±5%

Rotation direction: Switch 0/1

Operation mode: Button manual operation, self Reset

Rotation angle: maximum angle. 95° Adjustable mechanical Block

Run time: 2.5 seconds, 90°

Safety Level III (low voltage safety)

Protection Grade IP54
